Quick Details

• Certification:

  CE

• Size:

  160*79*37mmmm

• G.W:

  450g

• Voltage:

  12v

• Output Power:

  12w

• Place of Origin:

  CHINA

• Samples:

  Charge

• Sample Price:

  100

• Delivery Time:

  7DAYS

• Packing:

  Natural Packing

• Delivery Port:

  GUANGZHOU,NINGBO,SHANGHAI....

• Max. Production Capacity:

  100000

• Export Ratio:

  21% - 30%

• OE Experience:

  No

Product Name:Car Jump Starter YH-A8-01

Car Jump Starter YH-A8-01

Application

ALL CAR

Product Description:

OEM No/Model: YH-A8-01

Type:	Jump Start	Certification:	CE, FCC , ROHS	Size:	160*78*30mm
Place of Origin:	GuangdongChina (Mainland)	Brand Name:	Chedadang	Model Number:	A8
color:	Golden/Black	Net weight:	380g	Gross weight:	1030g

Specifications
electric emergency car jump starter
For 12v Vehicles Portable Battery
13800 mah
1 year warranty
OEM
electric emergency car jump starter
New development jump starter, jump start vehicle around 10-20 times
and long standby time around 1 year,
Ultrathin, easy to catch, Size, w car jump starter power bank eight just 10 percent of lead-acid cell

Charging for laptop, ipad, cell phone, camera and other 5V specification electronics.
It make you get rid of the heav car jump starter power bank y luggage, 3 into 1  multi function jump starter function, own 1 in your hand, saving you from the automobile electronic igniter, laptop adapter, cell phone charger, and power bank.
Specification:

Specifications	Capacity	13800mAh
	Dimensions (L*W*H)	160*78*30mm
	Color	Black
	Weight	380g
	Input	DC15V-1A
	Output1	DC5V-2A
	Output2	DC12V-2A
	Output3	DC16V-2A
	Output4	DC19V-3.5A
	features	4pcs blue LED indicating remaining power
	other founction	with white high bright LED lamp for SOS, LightingWarning lights
	Operating temperature	-30°C-65°C
Charging Times	iPhone5	5-7 times
	iPad2	1.2 times
	Samsung Note3	3.0 times
	normal laptop	3-4 hour
Accessories	1.3 in 1 usb cable 1pcs
	2.Battery Clip  1pcs
	3.Notebook connectors 8pcs
	4 Power adapter 15v 1A 1pcs
	5.12V 1A car charger 1pcs
	6.Instruction book 1pcs

Instruction:

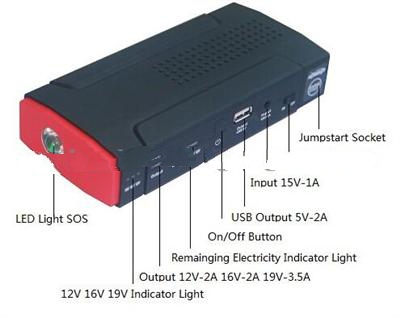

Indicator light
Press the switch button to check the capacity of the jump starter

Indicator lights	Unlit	4 Flashing	1 Solid	2 Solid	3 Solid	4 Solid
Battery capacity	0%	25%	25%	50%	75%	100%

When charging. Indicator lights will flash one by one, The number of the solid indicator lights indicates the battery capacity of jump starter. Fullindicator lights are solid when charging is pause or complete.

Charging for starter itself:
1. Plug the home adaper into the universal socket.
2. Connect 15V 1A input port of Jump Start to the other end of the home adapter.
Or
1. Plug the car adapter into the socket of the cigarette lighter.
2. Connect 12V 1A input port of Jump Start to the other end of the car adapter.

For Jump Start of 12V vehicle
1.Make sure that the the number of indicator light is not less than 3.
2.Connect the red battery clamp of jump cable to the vehicles positive (+) battery terninal and connect the black battery clamp of jumper cable to the vehicels negative(-) battery terninal.
3.Plug the cord of the jump cable into the jump start socket.
4.Start the vehicle.
5.When the vehicle start, remote jumper cable from jump starter and disconnect red and black clamps to the vehicle battery terninal within 30 seconds.
6.Leave the verhicles engine running.

Charging for mobile phone or tablets
1.Plug the switch cable B to USB 5V 2A output port.
2.Select the appropriate connector for your mobile phone or tablet, connect it to the switch B cable with your cell phone or tablet.
3.Press the switch button to charge.


Charging/power supply for notebook
1. Plug the switch cable A to USB 19V 3.5A output port.
2. Select appropriate connector for your notebook and connect it to the switch cable A and your notebook.
3. Press the switch button to charge/power supply.
