Quick Details

• Usage:

  Universal

• Size:

  Standard

• Car Make:

  Car

• OE NO.:

  N/A

• Place of Origin:

  Shaanxi China (Mainland)

• Brand Name:

  YR

• Model Number:

  002

• Warranty:

  5 Years

• Material:

  Low carbon steel

• Standards:

  ASTM A254, SAE J527, YB/T4164

• Zinc Galvanization:

  White, Iredescent(yellow), Olive Green

• Coating:

  PVF

• Delivered Shape:

  Cut to length, Coil, Pancake

• Inside Cleanliness:

  No greater than 0.16g per square meter

• Tensile Strength:

  Greater than 290MPa

• Yield Strength:

  Greater than 180MPa

• Elongation:

  Greater than 25%

• Flaring Ratio:

  Greater than 20%

• Place of Origin:

  Shaanxi China (Mainland)

• Packing:

  as your requirement

• Delivery Port:

  Tianjin/Shanghai/qingdao and others

• OE Experience:

  No

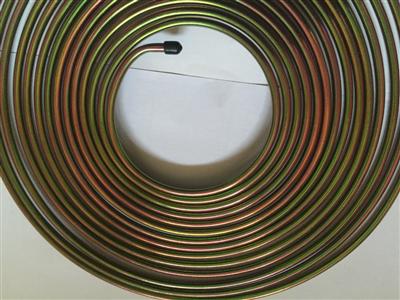

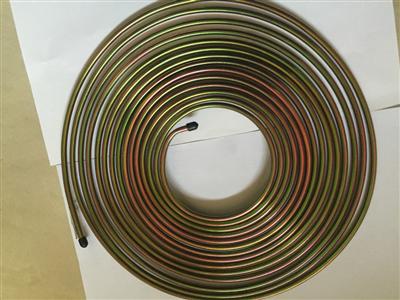

Product Name:1/2"OD iredescent (yellow) auto brake line tubing coil

1/2"OD iredescent (yellow) auto brake line tubing coil

Application

all

Product Description:

                                           auto brake line tubing coil

 1. Basic Tubing

• Shaanxi Yongrui Double-Wall steel tubing is the economical alternative to seamless tube. It has many of the same qualities as seamless tubing and is suitable for most high pressure applications.
• This brazed Double Wall steel tubing is manufactured to YB/T4164.
• Custom sizes may be manufactured at customer request. Double Wall steel tubing is available in coils or can be cut-to-length.

2. Corrosion Protection

Zinc Galvanized Tubing

Zinc galvanized double wall steel tube has better corrosion protection than non-galvanized double wall steel tube which is copper brazed. Appearances of following colors are available after passivation with different corrosion protection performances.

PVF Coated Tubing

PVF (Polyvinyl Fluoride) amour protects tubes from corrosion

For far longer time than zinc coated tubes.

3. Salt-mist Test Performance

4. Introduction of YB/T4164

YB/T4164 is published for double wall brazed steel tubes (Bundy Tubes) used for refrigeration, A/C, general automotive, hydraulic and other similar applications requiring tubing of suitable quality for bending, flaring, forming, and brazing.

The dimensions, mechanical properties, requirements for coating, salt mist and double-flare tests of YB/T4164 are similar to US standards. While the chemical composition, flattening, bending, pressure proof tests and inside cleanliness of YB/T4164 are lower than that of US standards.

Generally the specifications of YB/T4164 are stricter than ASTM A254 and SAE J527.

The latest revisions of these standards are: YB/T4164-2007, ASTM A254-12, and SAE J527-201306.

Note: Please refer to the newest updates of these specifications.

Discrepancies in Major Parameters
